01Reference III · Wuhan, Hubei — China
Wuhan Metro Line 11 Phase IV — Jianguo River Crossing
Twin-Bore Metro · Slurry Shield TBM · CREG
The Jianguo section of Wuhan Metro Line 11 Phase IV takes a 12.56 m CREG slurry shield TBM on a twin-bore river crossing. Each running tunnel measures roughly 4.47 km and passes through hard, high-viscosity mudstone under high water pressure, including a 540 m small-radius curve — a combination that loads the tail seal continuously across the crossing. CENTOR supplies tail grease and TBM lubrication support for the drive.
Project Data
LocationWuhan, Hubei Province, China
Project TypeMetro — twin-bore river crossing

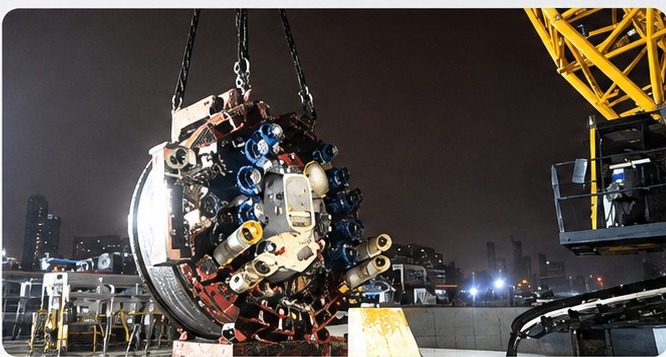

TBM TypeSlurry shield TBM
Excavation Ø12.56 m
Tunnel Length4,472.938 m right line
4,470.061 m left line
4,470.061 m left line
TBM BrandCREG — China Railway Engineering Equipment Group
CENTOR ScopeTail grease · TBM lubrication support
TBM Type
Slurry Shield
Slurry pressure balance
Excavation Ø
12.56 m
Bored diameter
Tunnel Length
4,472.9 m / 4,470.1 m
Right line / left line
TBM Brand
CREG
China Railway Engineering Equipment Group
Alignment Data
| Right line chainage | CK13+624.083 – CK9+356.231 |
| Left line chainage | CK13+624.108 – CK9+356.465 |
| Main strata | High-viscosity mudstone, relatively hard lithology |
| Minimum curve radius | 540 m |
| Configuration | Twin-bore tunnel, gravity drainage zoning |

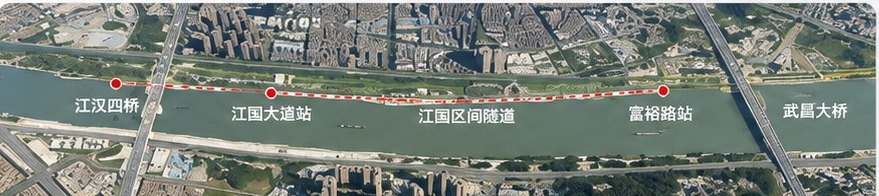

Route Context
- Section forms part of Line 11 Phase IV, running Jianguo section — Fuyu Road Station — Wuchang Central District Station
- Crossing runs between Jianghan Fourth Bridge and Wuchang Bridge
- Passes Jianguo Avenue Station toward Fuyu Road Station
- Designed as a twin-bore tunnel with gravity drainage zoning
Geology & Engineering Conditions
River-crossing section; highlights high-viscosity mudstone, high water pressure and a 540 m small-radius curve.
